On a stand this size no neighbour's wall is shading you. Here is where the sun actually lands through the year, which rooms suffer, what we'd fit on each elevation — and honestly, what each of those choices costs you in return.
Want it in one file? Save the PDF version — the same guide, 2.0 MB.
Chartwell isn't a suburb of streets. It is agricultural holdings — 9.07 km² of smallholding land in Region A of the City of Johannesburg, with a 2011 population of 1,728.[1] Cedar Avenue splits it into Chartwell North Estates and Chartwell Country Estates, with Steyn City on one boundary and Farmall — Chartwell West — beyond the other.[1] In the Country Estates section, stands start upwards of 8,000 m².[2]
Nothing else out here is shading you. In a cluster suburb half the sun problem is solved by the neighbour's wall and a hedge four metres from the glass. On an eight-thousand-square-metre holding there is no neighbour's wall: the living room looks straight out over grazing, and what arrives at four o'clock arrives in full.
The roads are gravel, and they are staying gravel. In July 2026 the Johannesburg Roads Agency confirmed there is "no planned upgrading of gravel roads to surfaced roads due to the unavailability of funds" across the Farmall and Chartwell holdings, with grading twice a quarter and residents themselves split on tarring.[3] So fabric and hardware here live with more airborne dust than the same products four kilometres away in Fourways.
And the view is the reason the house is here. Chartwell Country Estates holds Gauteng Conservancy status, with two wetlands and five kilometres of the Klein Jukskei River along its western edge.[2] West is where the evening light and the ridge line are — which is awkward, because west is also the elevation that cooks the room.
Chartwell sits at 25.98° south.[1] The most-cited South African study of sun, shade and daylight in town planning is calculated for latitude 25.733°[4] — a quarter of a degree away, so its numbers are effectively Chartwell's.
At solar noon on 21 December the sun reaches 87.7°: near enough straight overhead. On 20 June it reaches 40.84°.[4] That 47-degree swing is why one blind rarely answers a whole room.
The sunset bearings matter even more out here. On 21 December the sun sets at an azimuth of 243.35° — twenty-seven degrees south of due west; on 20 June at 295.76°, twenty-six degrees north of it.[4] The setting sun sweeps a fifty-two-degree arc along your western horizon through the year, so a pergola built for one of those positions is wrong for the other.
The consequence, in the study's own terms: western afternoons run far hotter than mornings, horizontal overhangs suit "altitude-dominated" angles on northern facades, and low, azimuth-dominated sun east and west wants vertical control instead.[4] Plainly — an eave earns its keep on north glass and does almost nothing against four o'clock on the west.
Sun altitudes and sunset bearings from the published Pretoria figures at 25.733° S[4] — Chartwell is a quarter of a degree away.
One house, four different problems. Before fabric, before motors, work out which wall the room sits on — it decides more than anything else here.
Where the sun lives all winter: high enough in December that a decent eave does much of the work, then at 40° and pouring straight in by June.[4] On a holding with cold mornings that winter sun is worth money, so a blockout roller is a blunt instrument here — down costs you the warmth you were entitled to.
Low, almost horizontal sun from three o'clock, arriving anywhere across a 52-degree spread depending on the month[4] — and out here it is also the elevation with the view worth keeping. If the lounge is unbearable at four, the glass itself is heating and radiating inwards: an interior blind fixes the glare at once and the heat only partly.
The same geometry mirrored, into a house that has cooled all night. In December the sun clears a flat horizon early and nothing stands between it and the bedroom window — while two rooms on one wall want opposite things: properly dark where you sleep, still see-through where you check the yard.
Almost no direct sun most of the year, so south rooms hold the steadiest light you have — and are first to feel a 4 °C night.[6] Shading is rarely the issue; heat loss through a big pane usually is, especially in low ground where cold air collects.[9]
Tell us which rooms are giving trouble and we'll email you this same Journal with your elevations noted against it — which windows we'd treat first, and what we'd be weighing up on each one.
It's an email, not a visit. Nobody phones you about it.
Each of these is right somewhere on a holding and wrong somewhere else. The trade-off box is the part a brochure leaves out. Tap "Add to my list" and it carries into the forms below.

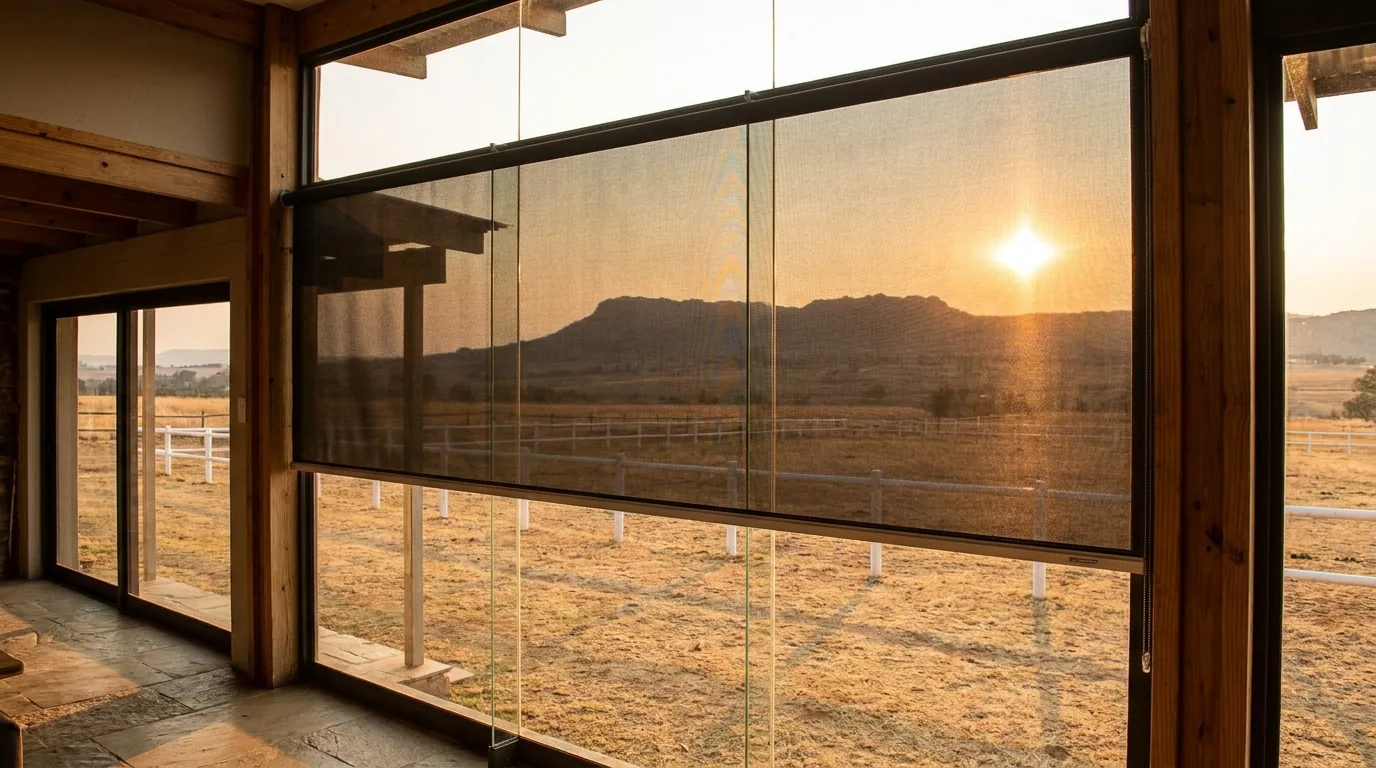

One flat sheet of open-weave fabric on a slim tube — no folds, no gathers. It cuts glare and a useful share of the solar gain while leaving the paddock visible, which out here is the point of the window. Better than a lined curtain, which solves four o'clock by deleting the view you bought.
It reverses after dark: lights on inside, and you are the visible one. Where a boundary or stable yard is close, pair it with a blockout on the same bracket.
A single smooth sheet with no folds for dust to settle into, which matters on a gravel road.[3] Against a December sunrise over an open paddock nothing else comes close.
Binary — down is dark, up is everything — so it is the wrong tool on a north living room where you want the June sun. Without side channels, light finds the edge of the reveal.
On a north elevation the useful control is angle, not coverage: a venetian throws high December sun onto the ceiling and opens flat in June, so one product handles both ends of the 47-degree swing a roller cannot.[4]
Slats collect dust, and off a graded gravel road[3] that is a real maintenance item — aluminium wipes down far more easily than timber.

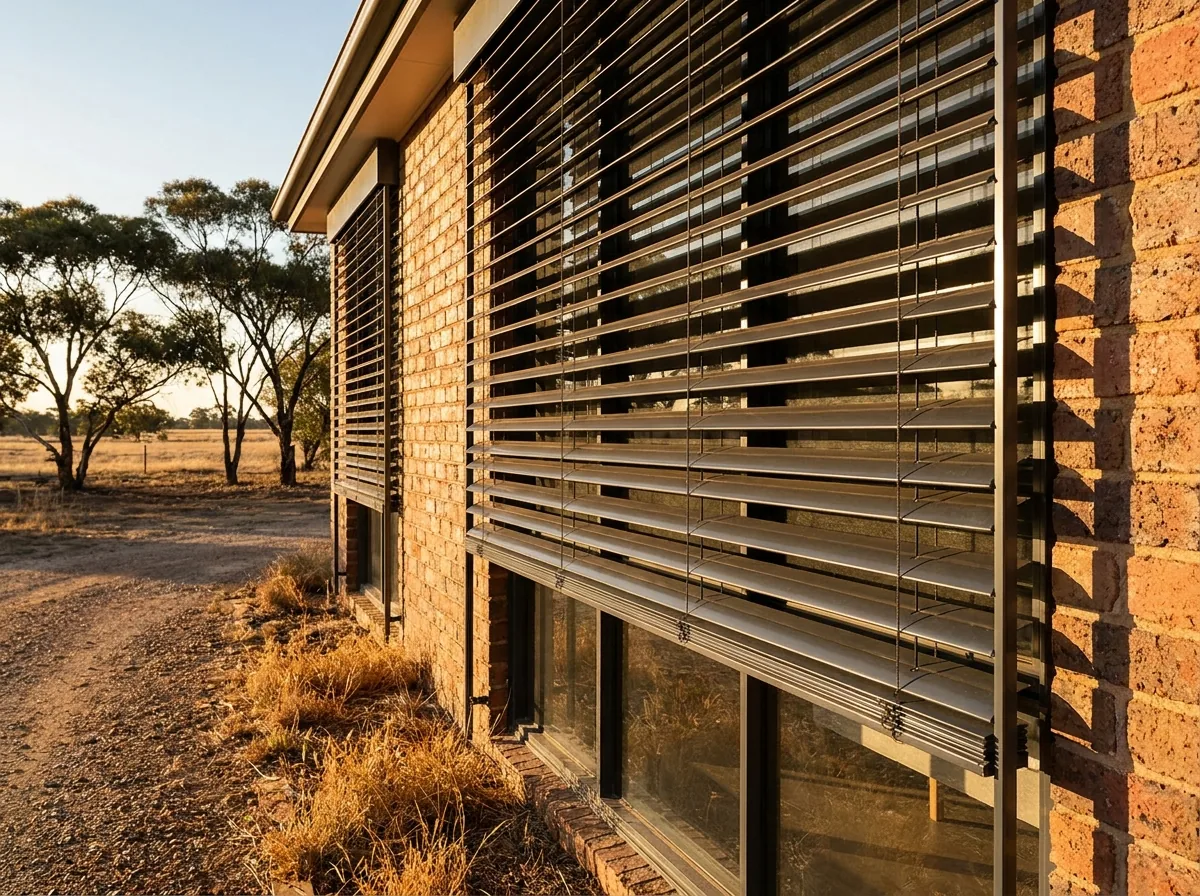

Aluminium slats in side guides, mounted outside the glass. We'd specify these over an interior blockout roller on a hard west wall for a physical reason: turning the heat away outside the pane keeps a room cooler than absorbing it inside, where the glass warms and radiates at you all evening. Tilted, they still keep the ridge-line view.
Dearer, visible on the facade, and living outdoors in a hail belt that peaks in the late afternoon.[8] We'd motorise with a wind sensor; inside a gated estate it needs architectural approval first.

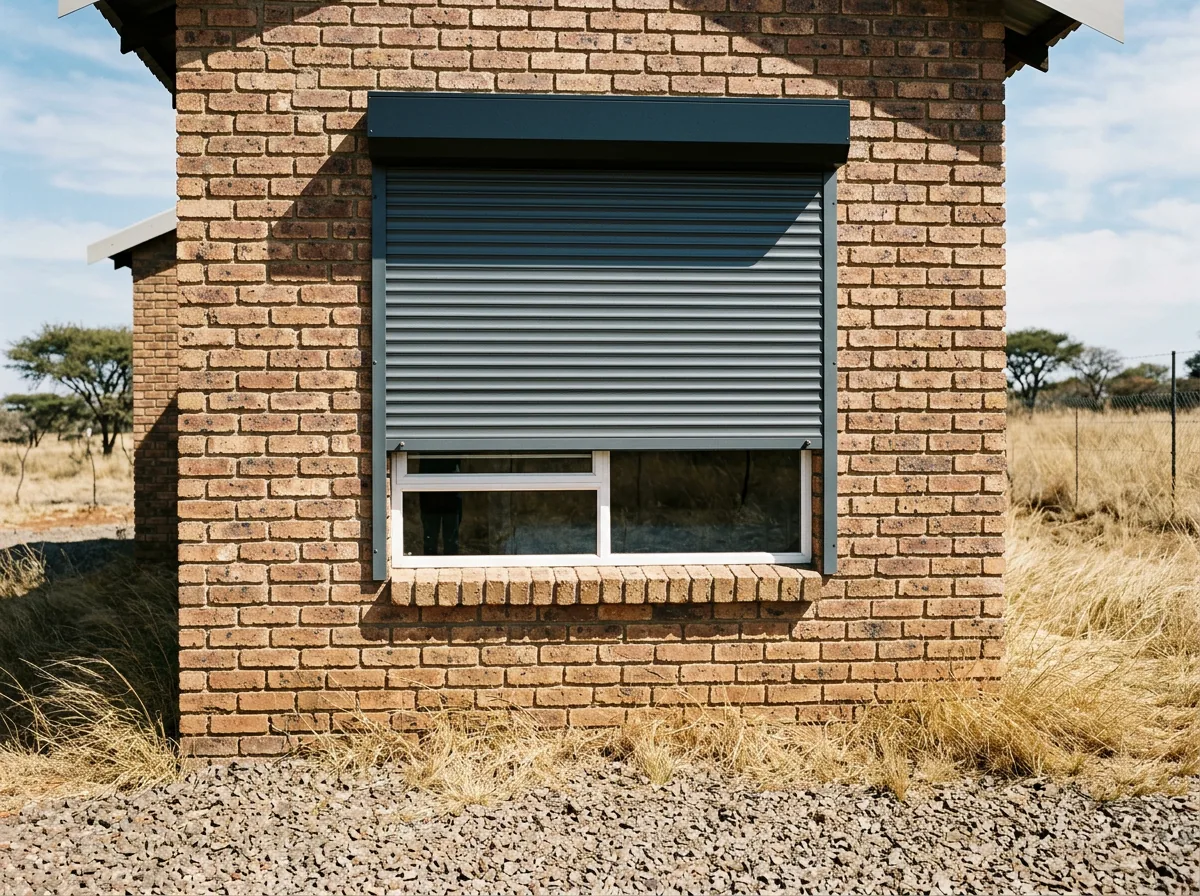

Rigid aluminium slats rolling down from a headbox outside the building, covering the whole opening — heat and glare stopped before the glass. Shading, not security: these are not security-rated shutters, which are a different product, built and certified differently, and quoted on request.
The most visible exterior change on this list, and the headbox has to live somewhere — a design decision, not a measurement. Closed is closed: coverage, not adjustable light.

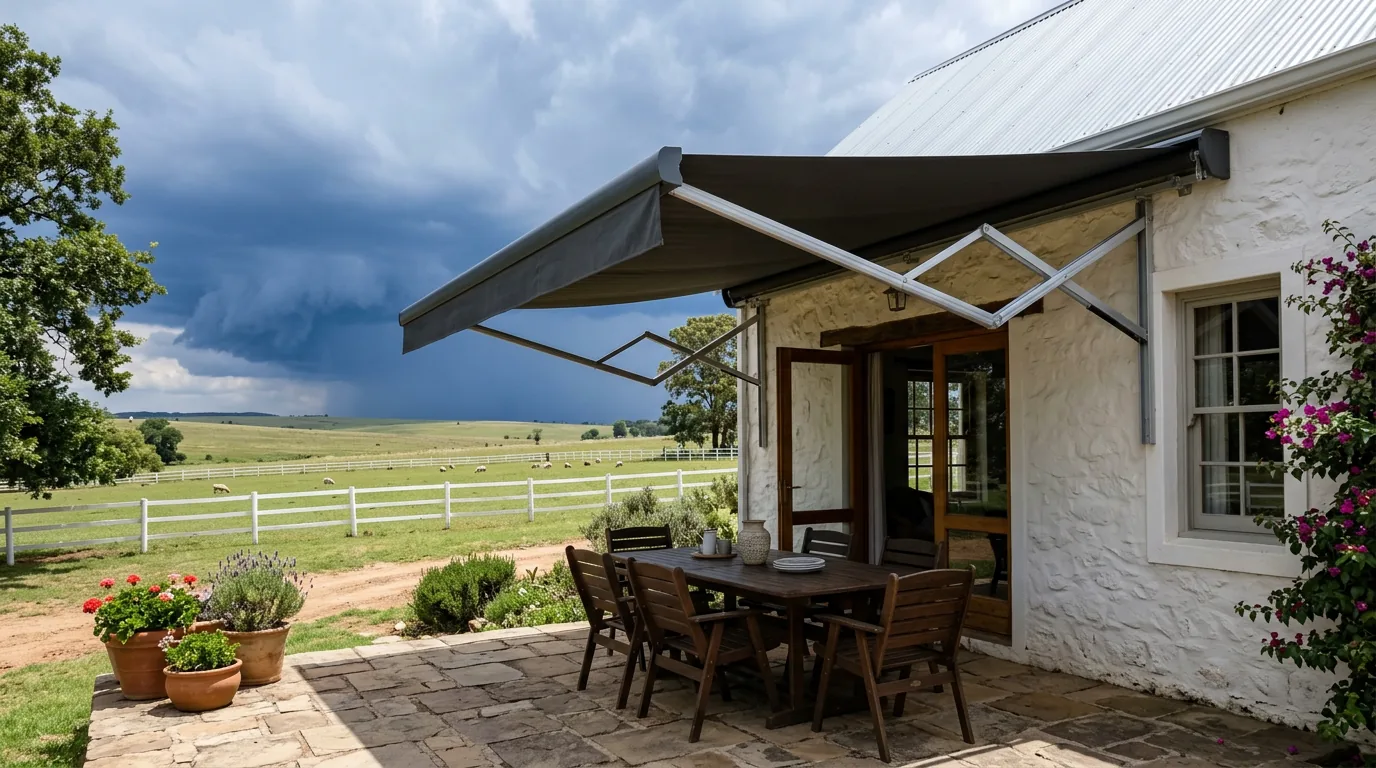

Where the outdoors is the extra room — and on a holding it always is — an awning buys more usable house than anything you could do to a window, then folds away and gives back the low June sun on the paving.
It lives out in the weather: summer afternoons bring thundershowers,[6] and Highveld hail peaks between four and five.[8] We'd specify a full cassette and a wind sensor that retracts it whether or not you are home.

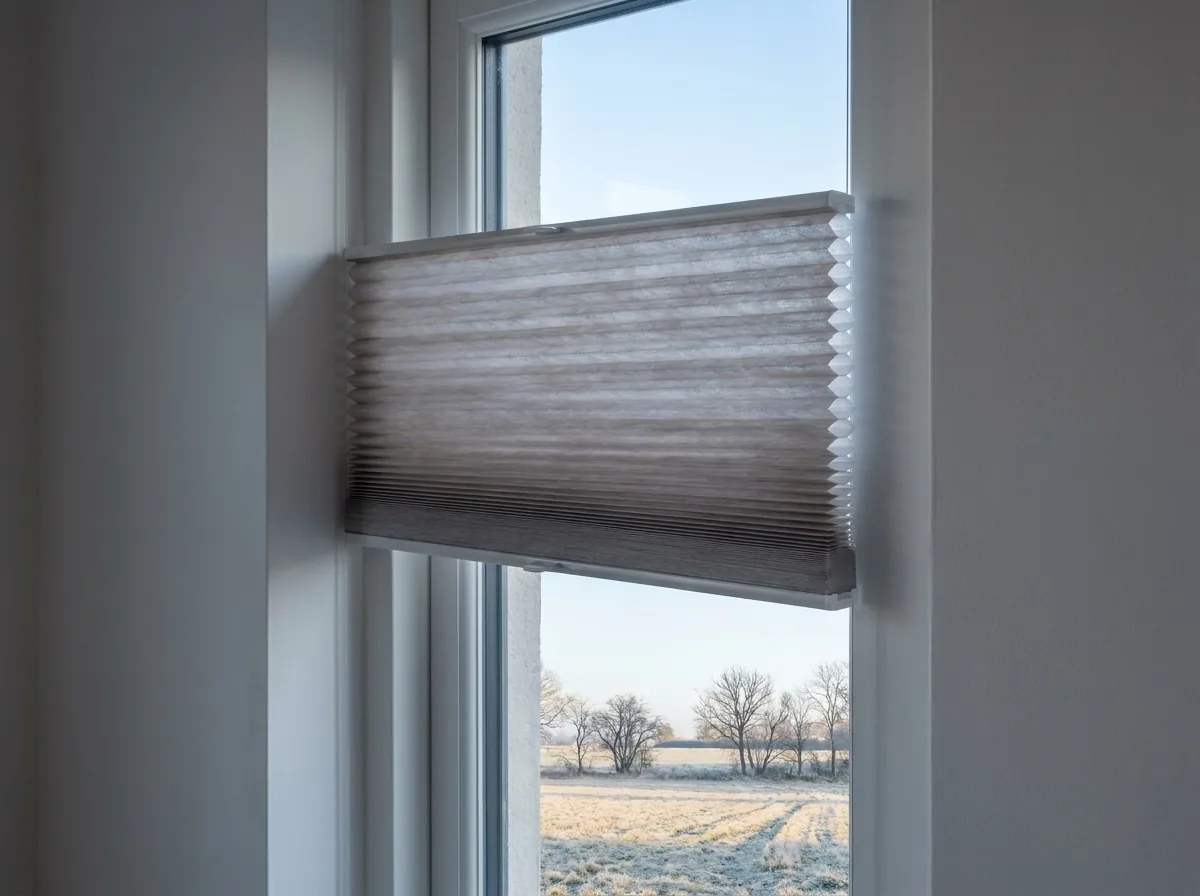

The fabric cells hold still air against the glass. In a south room, or a house in low ground where cold air pools on a clear night,[9] it is the cheapest thermal improvement short of replacing the window.
The gain sits on the winter side of the ledger — not a heat-rejection answer for a hot west wall, and a soft pleated product, so wrong in a dusty kitchen.
Less about luxury here than reach and reaction: glass walls three or four panels wide are heavy by hand, a stairwell blind gets used exactly never if you need a pole, and any exterior product wants a wind sensor to save itself in a November storm.[8]
It needs power at the head of the opening — battery, wired or solar — and on long homestead buildings that route is the real constraint. Retrofitting into a finished ceiling is possible but rarely invisible.
Also on the list below: day & night blinds, vertical & panel blinds for wide stacking doors, zip screens to close an open stoep against wind and dust, concealed blinds on a new build, and skylight & shaped blinds for the gables homestead conversions are full of.
Chartwell is freehold agricultural-holding land.[1] No body corporate has to give written consent before an awning, an external venetian or a roller shutter goes up — a real freedom, and one reason exterior shading is far more common here than in the complexes down the road. If your holding sits inside one of Chartwell's own estate associations, a courtesy call before anything large and visible goes up is still worth making.
The estates we also cover work differently. Dainfern, Cedar Lakes and Helderfontein run their own architectural approval. Interior blinds inside an existing reveal change nothing outside, so the question doesn't arise; awnings, external venetians, roller shutters and zip-screen channels do. We fit blinds and won't speak for your HOA — but at the measure we say plainly which options touch the outside, so the right question reaches the right person before anything is made.
Building or renovating? Get us in early: a concealed recess has to exist before the ceiling closes, and motor cabling is trivial in an open wall and awkward in a finished one — which is why the architect-designed builds on Helderfontein end up with the tidiest installations. SANS 10400-XA:2021 also raised the fenestration-calculation threshold from 15% to 20% of floor area and no longer distinguishes west, north and east glass for solar heat gain,[10] so ask your architect how your shading is counted.
Everything above is what we know about Chartwell. What no page can know is your house — and five things decide the actual specification, all settled in about an hour with a tape, a compass and a torch.
"West-ish" is not good enough when the sunsets are themselves spread across fifty-two degrees.[4] Twenty degrees of wall rotation moves the answer between an interior sunscreen and something outside the glass, so we take a compass reading at every elevation.
Depth decides whether a blind can sit inside the opening at all, and how much light creeps round the edge. Openings are rarely square — and plastered brick, a later drywall addition and a steel glazing bar are three different fixings.
This is the Chartwell one. With no neighbouring buildings to break it, a stoep on the open side of the house sees wind a walled suburban patio never does. Awnings and zip screens live or die on it — obvious in two minutes on the paving, impossible to judge from a plan.
For anything motorised the whole constraint is the route from a power point to the head of the window. On long homestead buildings and converted outbuildings, that walk-around is the difference between a clean install and a compromise.
How far the graded gravel road[3] or the stable yard sits from that window changes the fabric we'd choose — as does the tree doing half your shading, and whether it will still be there in July.
A consultant comes out to the holding with fabric and slat samples, measures every window properly, and leaves a written quote itemised per window. There is no charge for it, and no commitment attached. If you'd rather have a rough number first, the window list sits inside the same form — no obligation either way.
Anything you added to your list while reading is already ticked below.
Not ready for a visit or a number? Tell us which rooms are the problem and we'll email you this Journal with your own elevations noted against it. Nothing is booked and nobody phones.
Every geography, climate and regulation claim above traces to one of these. Where we've reasoned from them rather than quoted, we've said so in the text.
Two honest caveats. The solar figures in source 4 are calculated for Pretoria at 25.733° south; Chartwell sits at 25.98°, so its own angles differ by a fraction of a degree — we quote the published numbers rather than invent our own. And the hail and frost material is regional and physical, not a Chartwell measurement: there is no published frost or hail record for these holdings specifically, which is one more reason we look at your particular stand in person rather than at a map.
